VALVE AUTOMATION

Expand All | Contact All

PNEUMATIC BUTTERFLY VALVE

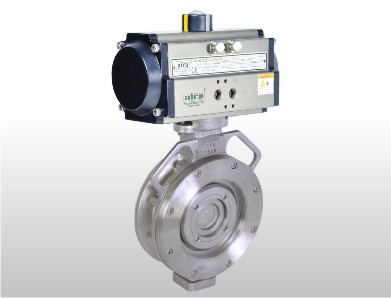

Pneumatic Rotary Actuator Operated “Triple” Off – Set Butterfly Valve

Aira

SPECIFICATIONS____________________________________________
Model   SDVTOB
Design   Triple Off Set Fire Safe Design Wafer type Butterfly Valve
Body : ASTM A 216 Gr. WCB A 351 Gr. CF8 / CF8M
Size Range   2" to 12"
Shaft   AISI 410 / 304 / 316
Disc.   ASTM A 351 Gr. CF8 / CF8M
Seat : Metal to Metal
Seat Leakage   As per Class VI
Temprature : 550 °C ( Above 550°C On Request )
Pressure rating : As per 150# B16.34
End Connection : ASME / ANSI B 16.5 Class 150
