SOLENOID VALVE

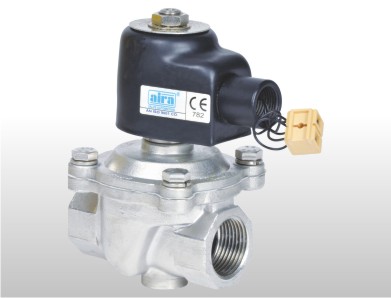

2/2 Way Semi Lift Diaphragm Operated Low Pressure Solenoid Valve

Aira

SPECIFICATIONS__________________________________
Model : GSD / GTD
Design : Normally Open / Normally Close
Body : CF8 / CF8M
Size Range : 3/8" to 4"
Diaphragm : NBR / PTFE
Temprature : up to 85°C (High Temperature On Request)
Pressure : 0 to 5 Bar (up to 6 BAR On Request)
Coil Voltage : 12V, 24V, 48V, 110V, 230V, AC/DC
Coil Insulation : “F” & "H" Class Suitable up to 140°C
Coil Encloser : IP 67
Coil Rating : Continuous Rated
Media : Air, Water, Gas, Vacuum, Light Oil, Corrosive Fluids
Ends : Screwed End / Flanged End 150 Class / Triclover End
.
