PNEUMATIC CONTROL VALVE

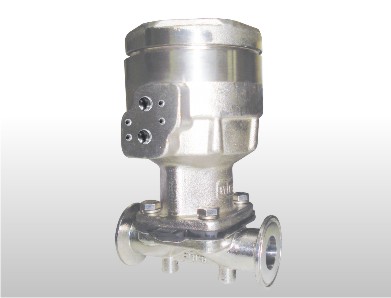

Pneumatic Cylinder Operated Pharma Diaphragm Valve T.C. End

Aira

SPECIFICATIONS__________________________________
ACTUATOR DETAILS :
Body   CF8 / CF8M
Actuator Type   Double Acting / Single Acting
Air Connection   1/4″ BSP (NPT On Request)
Operating Pressure   3.5 to 7 BAR

VALVE DETAILS :
Model : PDV
Size Range : 1/2″ to 3″
Body : CF8 / CF8M / CF3M
Bonnet : CF8 / CF8M / CF3M
Diaphragm : NBR
Pressure : up to 5 Bar
Temperature : up to 80°C
End Connection : Triclover End
