PNEUMATIC BUTTERFLY VALVE

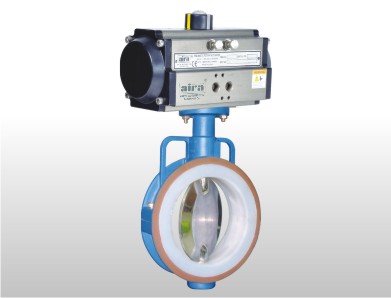

Pneumatic Rotary Actuator Operated “PTFE SLEEVE” With Mirror Finish Disc Butterfly Valve

Aira

SPECIFICATIONS____________________________________________
Model : ITC
Design   Short Wafer type Centric Disc Butterfly Valve with FEP/PFA Lined Body
Body : Cast Iron / Ductile Iron / WCB / CF8 / CF8M
Size Range   2" to 16" (Higher Size Available On Request)
Disc.   Ductile Iron / CF8 / CF8M
Seat : Teflon Sleeve
Seat Leakage : Tight Shut Off
Temprature : up to 160°C Depending on MOC
Working Pressure : PN 10 (PN 16 On Request)
