PNEUMATIC BUTTERFLY VALVE

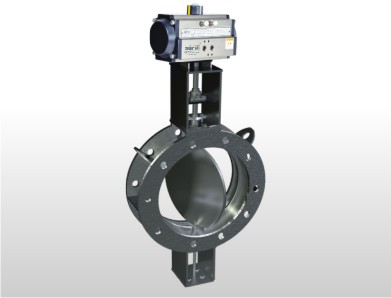

Pneumatic Rotary Actuator Operated Double Flange Fabricated Damper Valve

Aira

SPECIFICATIONS____________________________________________
Model : ATF-MS-G
Design   Centric Disc Double Flange Damper Valve
Body : IS 2062 Gr. B
Size Range   8" to 80"(up to 120” on Request)
Shaft   AISI 410
Disc.   IS 2062 Gr. B
Seat : Metal to Metal
Seat Leakage : 5% Leakage of Main flow (Class-1 Available on Request)
Temprature : Up to 450°C ( up to 1200°C available on Request)
Working Pressure : 5 BAR
End Connection : PN 6,EN 1092-1 (ASME B 16.47 Series B)
