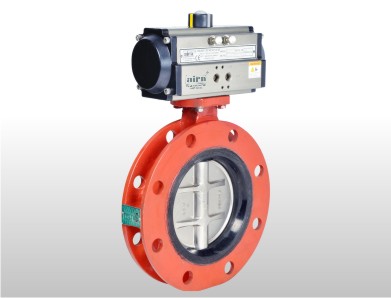

PNEUMATIC BUTTERFLY VALVE

Pneumatic Rotary Actuator Operated Wafer Type Double Flange Butterfly Valve

Aira

SPECIFICATIONS____________________________________________
Model : DFW-ECO
Design   Short Wafer type Double Flanged Centric Disc Butterfly Valves with Single
Piece Rubber Lined Body
Body : Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN
Size Range   3" to 48"
Shaft   AISI 410 / AISI 304 / AISI 316 / AISI 316L
Disc.   Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN
(S.G. Iron with Teflon / Teflon / Powder / Nylon Coated / & Rubber Line)
Seat : Nitrile / EPDM / Viton / Hypelon / Silicon / Neoprene
Seat Leakage : Tight Shut Off
Temprature : -20°C to 80°C (High Temperature available on Request)
Pressure rating : PN 10 / PN 16 ( PN 20 ON REQUEST)
End Connection : Double Flange Wafer Type Suit 150#, Table 'D', 'E' & IS 6392 Table 11
(PN 10 / PN 16)
