SOLENOID VALVE

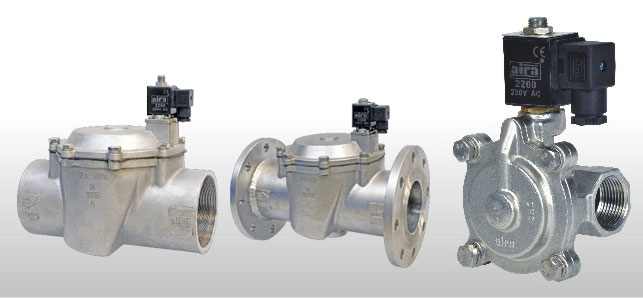

2/2 Way Pilot Operated Diaphragm Type Solenoid Valve

Aira

SPECIFICATIONS__________________________________
Model : ISD
Body : CF8 / CF8M
Size Range : 1/4" to 6"
Diaphragm : Nitrile
Temprature : -5°C to 85°C (Up to 120°C On Request)
Pressure : 0.5 to 10 Bar
Valve Position : Normally Open / Normally Close
Coil Voltage : 12V, 24V, 48V, 110V, 230V, AC/DC
Coil Insulation : "F" Class
Coil Encloser : IP 67
Coil Rating : Continuous Rated
Media : Air, Water, Light oil, Gas Light Chemical
Ends : Screwed End / Flanged End 150 Class / Triclover End
