PNEUMATIC CONTROL VALVE

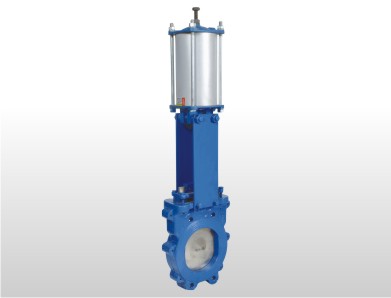

Pneumatic Cylinder Operated Knife Edge Gate Valve

Aira

SPECIFICATIONS__________________________________
ACTUATOR DETAILS :
Barrel   Alluminium / S.Steel
End Cover   Alluminium Pressure Die Cast / C.I.
Piston Rod   S.Steel
Seals   Nitrile (Viton on Request)

VALVE DETAILS :
Body : IS 210 Gr. FG200 S.Steel 304
Size Range : 2″ to 24″
Trims : AISI 304 SS
Bonnet : CF8 / CF8M / CF3M
Wedge : 304 Plate
Seals : Metal to Metal / NBR
MFG.Std. : Generally Confirming to MSS SP 81
Max. C.W.P. : 100 PSIG (7 Kg/cm2)
Leakage Class   Class IV to V
Ends   Lug Type Suitable For BS 10 Table “D” / ANSI B 16.1 (125#)
