PNEUMATIC CONTROL VALVE

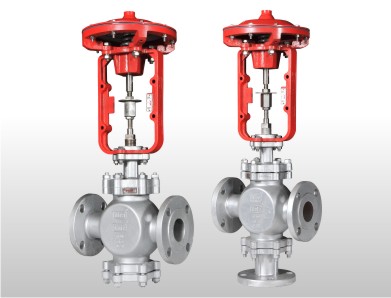

2/2 – 3/2 Way Pneumatic Diaphragm Operated On / Off type Control Valve Low Temperature

Aira

SPECIFICATIONS__________________________________
ACTUATOR DETAILS :
Actuator   Diaphragm Type Single Acting
Actuator Action   Air to Open / Air to Close
Air Fail Position   Closed / Open
Working Pressure   2.5 to 3.5 Kg/cm²

VALVE DETAILS :
Model : PKL
Type of Valve : Globe Type 2/2 Way – 3/2 Way
Size Range : 1/2″ to 6″
Body : WCB / CF8 / CF8M
Bonnet : CF8 / CF8M / CF3M
Trim / Plug   S.S.304
Pressure : up to 7 Bar
Temperature : up to 220°C
Leakage Class : Class IV As Per ASME B 16.104 CL For Metal to Metal Seating
/ FCI 70.2
End Connection   Flanged End As Per ASME B16.5 Class 150(300 Class & 600
Class available on Request)
